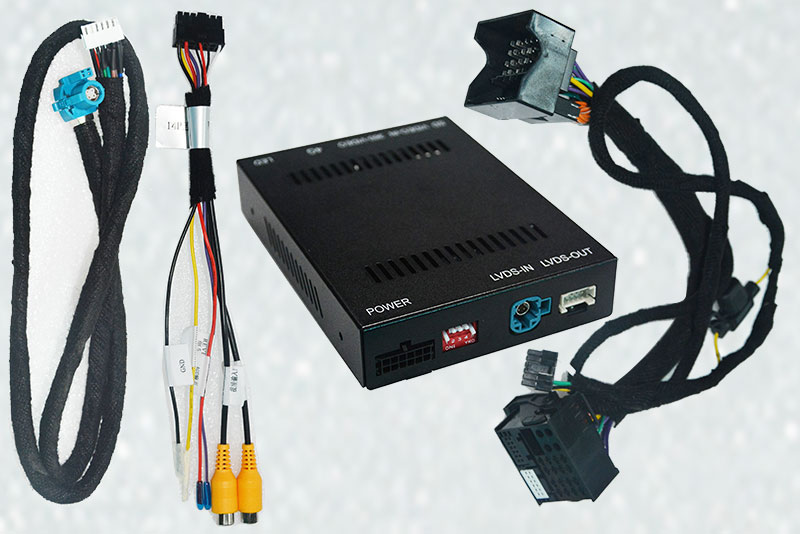

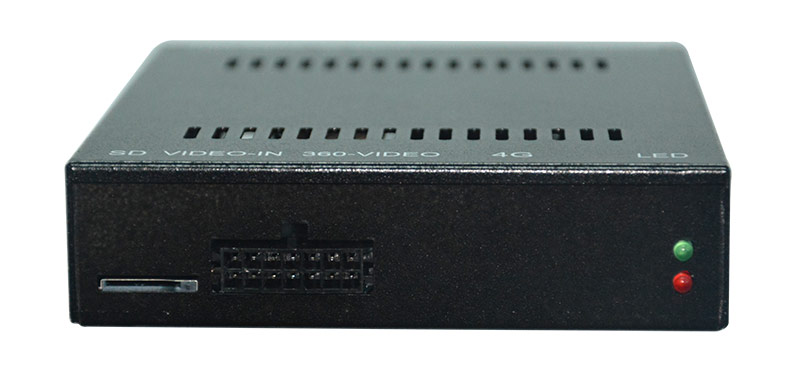

Fits for Bmw NBT system car stereo Decode box
PX3 using the latest high-speed CPU Android 5.1 operating system,relize car audio multimedia and communicate navigation functions
Features：
1,High Speed CPU processor,Android 5.1 OS
2,1.6GHz Quad Core,Cortex A9,1.6GHz Frequency
3,600Mhz Mali-400 MP4 GPU,600MHz Frequency
4,Low Leakage,high performance 28nm HKMG technology
5,High speed storage,RAM DDR3 1GB
6,16GB Applied high speed eMMC Flash,ROM 16GB
7,1 024*600 and 800*480 resolution supported
8,Supported Video format:MPEG-1,MPEG-2,MPEG-4,H264,H263,VC1,RV,RMVB,DivX,Sorenson Spark,VP8,AVS Stream etc
9,Two USB2.0 ports,one of them support OTG-USB,two SD card ports
10,capacitance touch screen
11,Supports a variety of audio formats: MP5, MP3, MP2, AAC, OGG, RA, WAV, FLAC, APE, etc.
12,upgrade via SD or USB port
13, Support a variety of Internet access like 3G Internet access, WIFI connection,USB/Android phone connections, while providing WIFI hotspot for other mobile devices Internet access in the vehicle.
14, Many Android application program can be downloaded.
15, support 3D digital navigation map,
16, reversing video function, reversing track, Driving recorder (optional)
17, support Ipod,touch,iphone4,iphone4S and many other devices connection.
18,Picture: support format JPEG, GIF, PNG, BMP file
19,Support Bluetooth,DVD, FM/AM Radio，RDS
20,1080P HD video decode playing via TF Card/USB
21,Compatible with external 1000GB Hard Disk via USB port
22,Can Bus decode box function:
a, supporting multi-function entertainment steering wheel control
b, decoding ACC output
c, decoding reversing control output
d, decoding illumination control output
e, decoding brake detection output
f, supporting original car audio information display (partly support)
Optional Functions:
1) DVB-T / ISDB-T/ ATSC
2) Rear View Camera
3) DVR
4)DAB
5)SD Card with GPS Map
material supplier:
2)CPU：STM32F100VC U.S.A
2)Audio IC:BD3702 FV ROHM Japan
3)Memory IC: W9812G6IH-6 128M Korea
4)Backlight IC:AT24C02 ATMEL U.S.A
5)Decoding IC:MTK1389DE/J Taiwan
6)Amplifier IC:TDA7388 Europe
7)DVD Optical head:
Remark:
1,we will provide 13 months of free maintenance service (means do not charge the cost of labor) from the date of your purchase.
2,If damaged is caused by undue wear and tear, dirt, misused, improper installation/operation, accident or repaired by unauthorized person, the warranty becomes void.(Repair parts fee will be charged)
3,repair parts ratio: 100: 1 (refers to parts, rather than the whole,Specific requirements pls ask the seller)
- See more at: http://www.dvdplayer.com.cn/Android-5-1audio-10-25-Audi-A4-B9-gps-Navigation-wifi-connection-DAB-pd553434.html#sthash.jGTro6Nw.dpuf PX3 using the latest high-speed CPU Android 5.1 operating system,relize car audio multimedia and communicate navigation functions
Features：
1,High Speed CPU processor,Android 5.1 OS
2,1.6GHz Quad Core,Cortex A9,1.6GHz Frequency
3,600Mhz Mali-400 MP4 GPU,600MHz Frequency
4,Low Leakage,high performance 28nm HKMG technology
5,High speed storage,RAM DDR3 1GB
6,16GB Applied high speed eMMC Flash,ROM 16GB
7,1 024*600 and 800*480 resolution supported
8,Supported Video format:MPEG-1,MPEG-2,MPEG-4,H264,H263,VC1,RV,RMVB,DivX,Sorenson Spark,VP8,AVS Stream etc
9,Two USB2.0 ports,one of them support OTG-USB,two SD card ports
10,capacitance touch screen
11,Supports a variety of audio formats: MP5, MP3, MP2, AAC, OGG, RA, WAV, FLAC, APE, etc.
12,upgrade via SD or USB port
13, Support a variety of Internet access like 3G Internet access, WIFI connection,USB/Android phone connections, while providing WIFI hotspot for other mobile devices Internet access in the vehicle.
14, Many Android application program can be downloaded.
15, support 3D digital navigation map,
16, reversing video function, reversing track, Driving recorder (optional)
17, support Ipod,touch,iphone4,iphone4S and many other devices connection.
18,Picture: support format JPEG, GIF, PNG, BMP file
19,Support Bluetooth,DVD, FM/AM Radio，RDS
20,1080P HD video decode playing via TF Card/USB
21,Compatible with external 1000GB Hard Disk via USB port
22,Can Bus decode box function:
a, supporting multi-function entertainment steering wheel control
b, decoding ACC output
c, decoding reversing control output
d, decoding illumination control output
e, decoding brake detection output
f, supporting original car audio information display (partly support)
Optional Functions:
1) DVB-T / ISDB-T/ ATSC
2) Rear View Camera
3) DVR
4)DAB
5)SD Card with GPS Map
material supplier:
2)CPU：STM32F100VC U.S.A
2)Audio IC:BD3702 FV ROHM Japan
3)Memory IC: W9812G6IH-6 128M Korea
4)Backlight IC:AT24C02 ATMEL U.S.A
5)Decoding IC:MTK1389DE/J Taiwan
6)Amplifier IC:TDA7388 Europe
7)DVD Optical head:
Remark:
1,we will provide 13 months of free maintenance service (means do not charge the cost of labor) from the date of your purchase.
2,If damaged is caused by undue wear and tear, dirt, misused, improper installation/operation, accident or repaired by unauthorized person, the warranty becomes void.(Repair parts fee will be charged)
3,repair parts ratio: 100: 1 (refers to parts, rather than the whole,Specific requirements pls ask the seller)
- See more at: http://www.dvdplayer.com.cn/Android-5-1audio-10-25-Audi-A4-B9-gps-Navigation-wifi-connection-DAB-pd553434.html#sthash.jGTro6Nw.dpuf 1.This interface allows you to integrate external video sources to your cars factory fitted screen.
2.There has front and rear camera automatically switch function,rear camera inputs and automatically Trigger by Reverse gear, when back to other gear, the interface can display more then 3S front camera.
3.Retain the original car CD player, support the display of the original car interface information.
4.Increased reversing track, radar.
5.It can support the original IDrive knob, no need touch screen
6.DVR can be customized.
7.Plug and play. video input from the LVDS cable.
